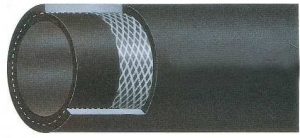

TEXTILE REINFORCED OIL

TUBE  : FUEL AND OIL RESISTANT , SMOOTH NBR RUBBER .

REINFORCEMENT : HIGH TENSILE SYNTHETIC TEXTILE.
COVER : ABRASION, OZONE, WEATHER AND OIL RESISTANT SPECIAL SYNTHETIC RUBBER.
APPLICATION : FOR DELIVERY OF FUELS IN INTERNAL COMBUSTION ENGINES FOR LUBRIFICATION AND GREASING SERVICES.

ID		OD	WP		BP		W	L
inch	mm	mm	bar	psi	bar	psi	g/m	m

10 NL

1/4"	6	12	10	145	30	435	115	10 - 100
5/16"	8	14	10	145	30	435	145	10 - 100
3/8"	10	16	10	145	30	435	170	10 - 100
1/2"	13	20	10	145	30	435	265	10 - 100
5/8"	16	24	10	145	30	435	350	10 - 100
3/4"	19	27	10	145	30	435	400	10 - 100
1"	25	35	10	145	30	435	655	10 - 100

10 NL

1/4"	6	14	20	290	60	870	175	10 - 100
5/16"	8	17	20	290	60	870	245	10 - 100
3/8"	10	19	20	290	60	870	285	10 - 100
1/2"	13	22.5	20	290	60	870	380	10 - 100
5/8"	16	26	20	290	60	870	460	10 - 100
3/4"	19	30	20	290	60	870	590	10 - 100
1"	25	37	20	290	60	870	815	10 - 100

  -35°C / +70°C         //      -31°F / +158°F

MARKING :  EMBOSSED  OR TRANSFER TAPE
TEXTOIL  OIL HOSE - W.P. ****BAR(****PSI) (**mm)
NORM	ISO 1307
COLOR
